What Is a CORR-A-SEAL® Corrugated Metal Gasket?

A CORR-A-SEAL® gasket is a semi-metallic sealing solution made from a corrugated metal core combined with soft facing materials on one or both sides. The corrugated profile creates concentric sealing ribs that improve compressibility and recovery while maintaining structural integrity. Our CORR-A-SEAL® gaskets are designed to deliver superior blowout resistance, recovery, and long-term sealing performance in applications where temperature fluctuations, pressure changes, and aggressive media can cause standard gasketing materials to fail.

This design allows the gasket to:

• Conform to flange surface irregularities
• Maintain sealing stress under thermal expansion and contraction
• Resist blowout in high-pressure environments
• Improve long-term seal reliability

CORR-A-SEAL® gaskets are ideal for heat exchangers, pressure vessels, pumps, valves, and piping systems where leak prevention is critical.

Originally developed by M&P Sealing, Graphonic® gaskets now known as Corr-a-Seal Gaskets. For the History of this Corrugated Metal Gasket click History.

In addition to standard sizes, M&P Sealing offers custom corrugated metal gasket solutions tailored to your equipment and process conditions.

Custom CORR-A-SEAL® Gaskets Built to Your Specs

Every sealing application is different. Our in-house fabrication team can manufacture gaskets to match exact dimensions, flange standards, and application requirements. That’s why we offer custom fabrication based on:

• Flange dimensions
• Operating pressure
• Temperature range
• Chemical compatibility
• Equipment type
• Industry standards

We can help identify the right material combination and gasket design for long-term performance.

Available Custom Options

• Full face gaskets with bolt holes
• Custom pipe flange gaskets
• Heat exchanger gaskets
• Boiler handhole and manway gaskets
• Valve bonnet gaskets / bonnet seals
• Partition bar heat exchanger gaskets
• Expanded PTFE-faced corrugated gaskets
• G.E.T. style gaskets with expanded PTFE inner ring

Key Features of CORR-A-SEAL® Corrugated Metal Gaskets

Request a Quote for CORR-A-SEAL® Corrugated Metal Gaskets

Need a corrugated metal gasket that can perform under pressure? M&P Sealing supplies CORR-A-SEAL® gaskets built for reliability, fast turnaround, and demanding industrial service. Contact our team today to request a quote, discuss your application, or get help selecting the right gasket for your operating conditions.

Standard CORR-A-SEAL® Corrugated Metal Gasket Specifications

M&P Sealing manufactures CORR-A-SEAL® corrugated metal gaskets built for reliable sealing in demanding industrial environments. Our standard gasket design combines metal strength with soft sealing materials to deliver long-term leak prevention and dependable recovery.

• Metal Core SS 316 (316L Stainless Steel) Encapsulated in graphite (Other metals are available)
• Pressure Rating 150 LB and 300 LB nominal pipe and fittings to suit ASME/B16.5 raised face flanges.
• Standard gasket thickness is 3/32”

Non-Standard Gaskets:

• Full face gaskets with appropriate dimensions, holes, etc.
• Heat Exchanger Gaskets
• Metals encapsulated with Expanded PTFE Tephonic
• Corr-a-Seal with Expanded PTFE inner ring ( G.E.T. Gasket)

CORR-A-SEAL® Gaskets for Pipe Flanges

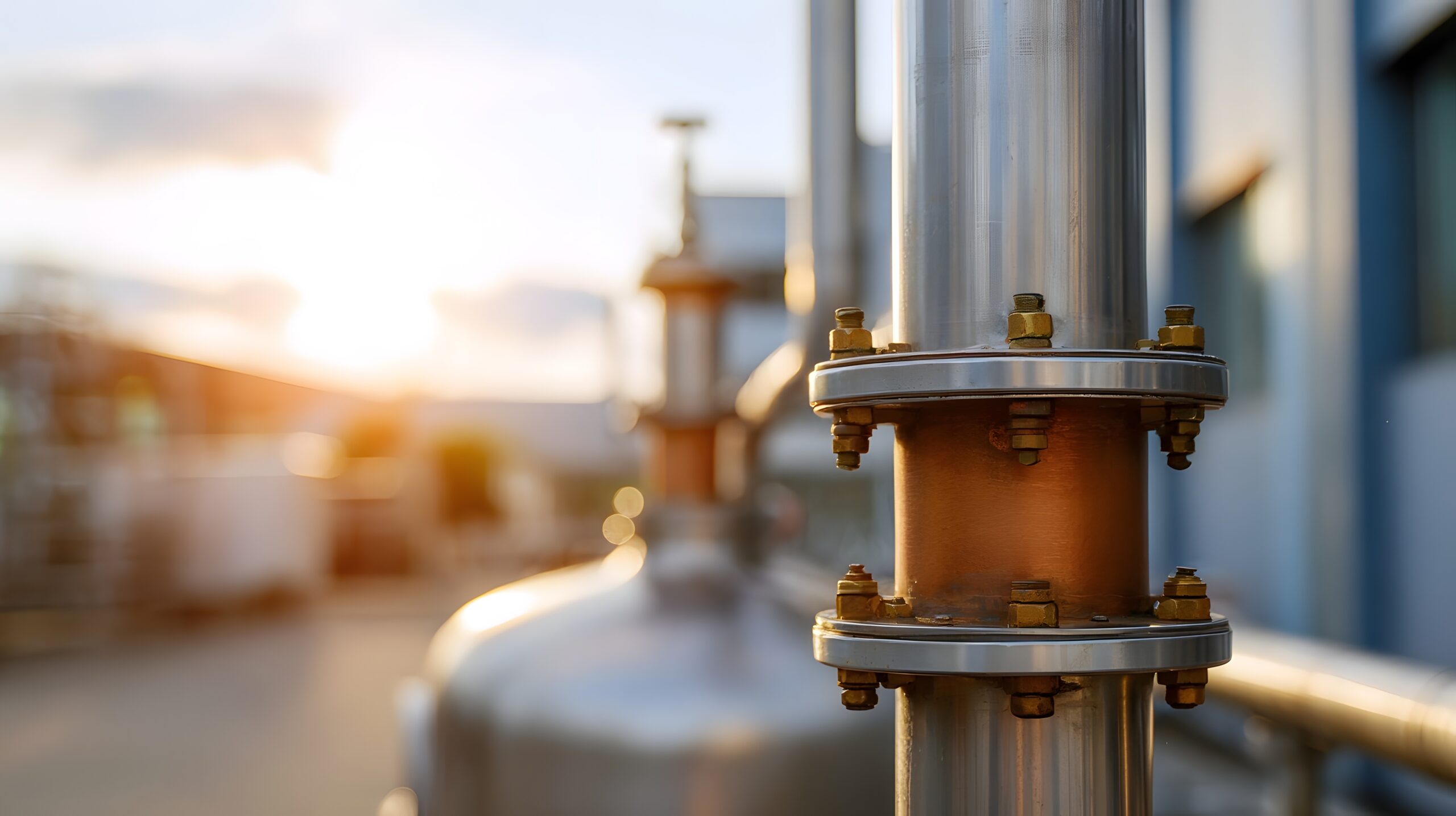

Pipe flanges are by far the most popular application we see our Corr-a-Seal gasket used. Thousands upon thousands are in service around the world from basic utilities like air, steam, and water to hydrocarbons and acids.

Common Pipe Flange Services

• Steam
• Water
• Air
• Hydrocarbons
• Acids
• Process chemicals

CORR-A-SEAL® gaskets help compensate for minor flange imperfections and maintain a dependable seal under varying operating conditions.

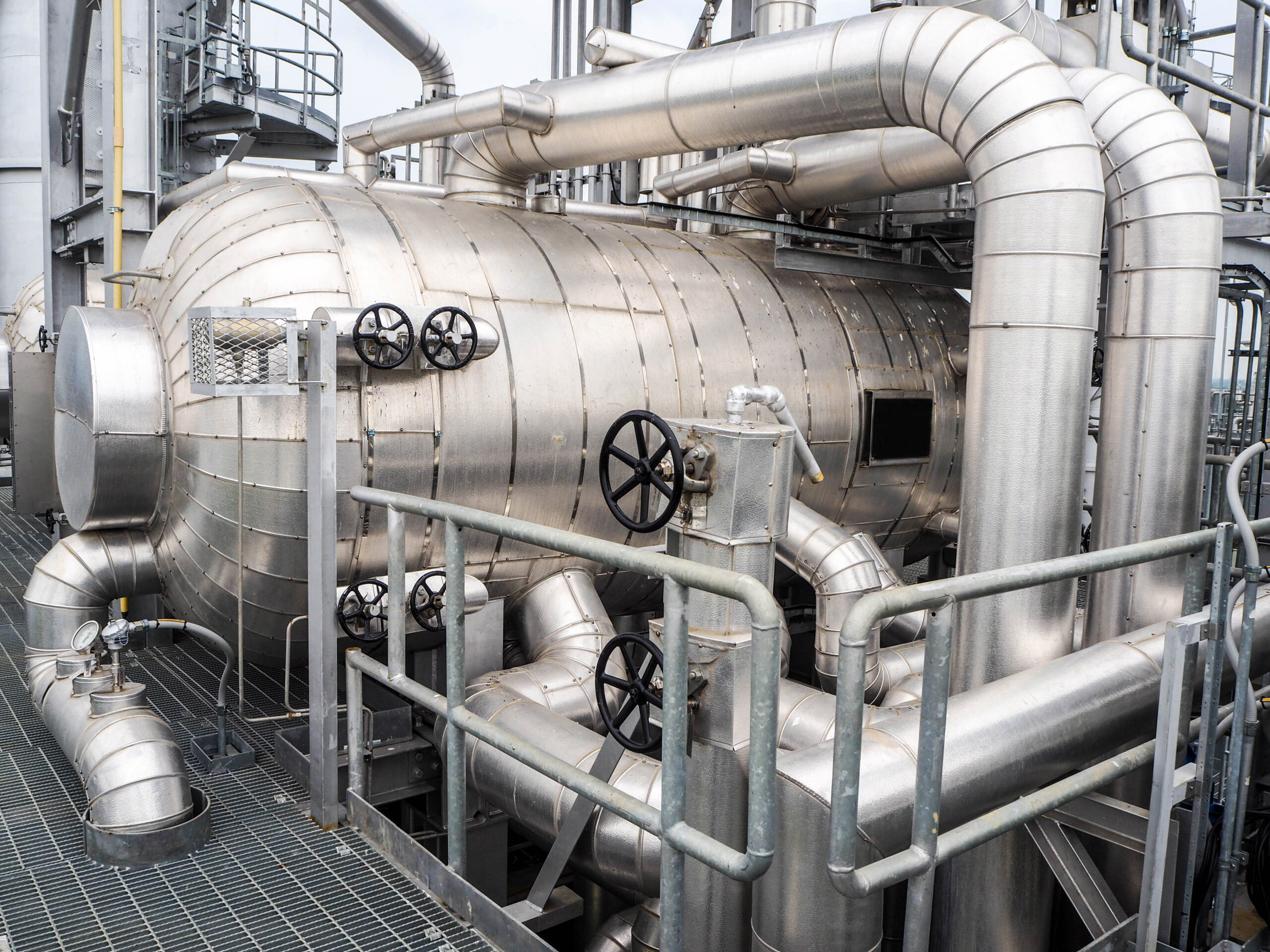

Heat Exchangers seems to be where the Corr-a-Seal performs at its highest potential. These applications are the most challenging with Delta P and Delta T conditions commonly found in crude units in refineries. Corr-a-Seal gaskets are primarily designed for TEMA shell and tube heat exchanger vessels. It allows you to maintain a tight seal in a wider range of bolt loads. They ensure a tight seal under fluctuating temperature and pressure conditions and can be supplied with partition pars in any configuration.

Valve Bonnet Gaskets / Bonnet Seals

Valve Bonnet flanges in 150# and 300# class are easily bent by over tightening trying to get a high-stress gasket to seal when there’s usually only four bolts. Corr-a-Seal gaskets have performed admirably in this application. These are almost always very narrow cross-section gaskets and which should mean it would require less force to seal. Not so much with high-stress spiral wound gaskets. The Corr-a-Seal gasket seals with 2/3 less bolt load than a spiral wound with the same level of tightness. By having a much lower seating stress you’re much less likely to overstress your bolts and flanges.

Any corrugated metal gasket manufactured by M&P Sealing is guaranteed by our commitment of delivering high-performance gaskets on time with unbeatable customer service. We have built a 80 + year reputation across the country to a wide array of industries being the pioneer of corrugated metal gasket technology.

Our in-house state of the art manufacturing capabilities for corrugated gaskets includes water jet cutting which allows us to custom make gaskets for all sorts of industries like:

• Refineries
• Chemical and Petrochemical Plants
• Paper Mills
• Industrial Fluid Sealing
• Steam Services
• Cryogenic Applications
• Thermal and Electromechanical Applications.
